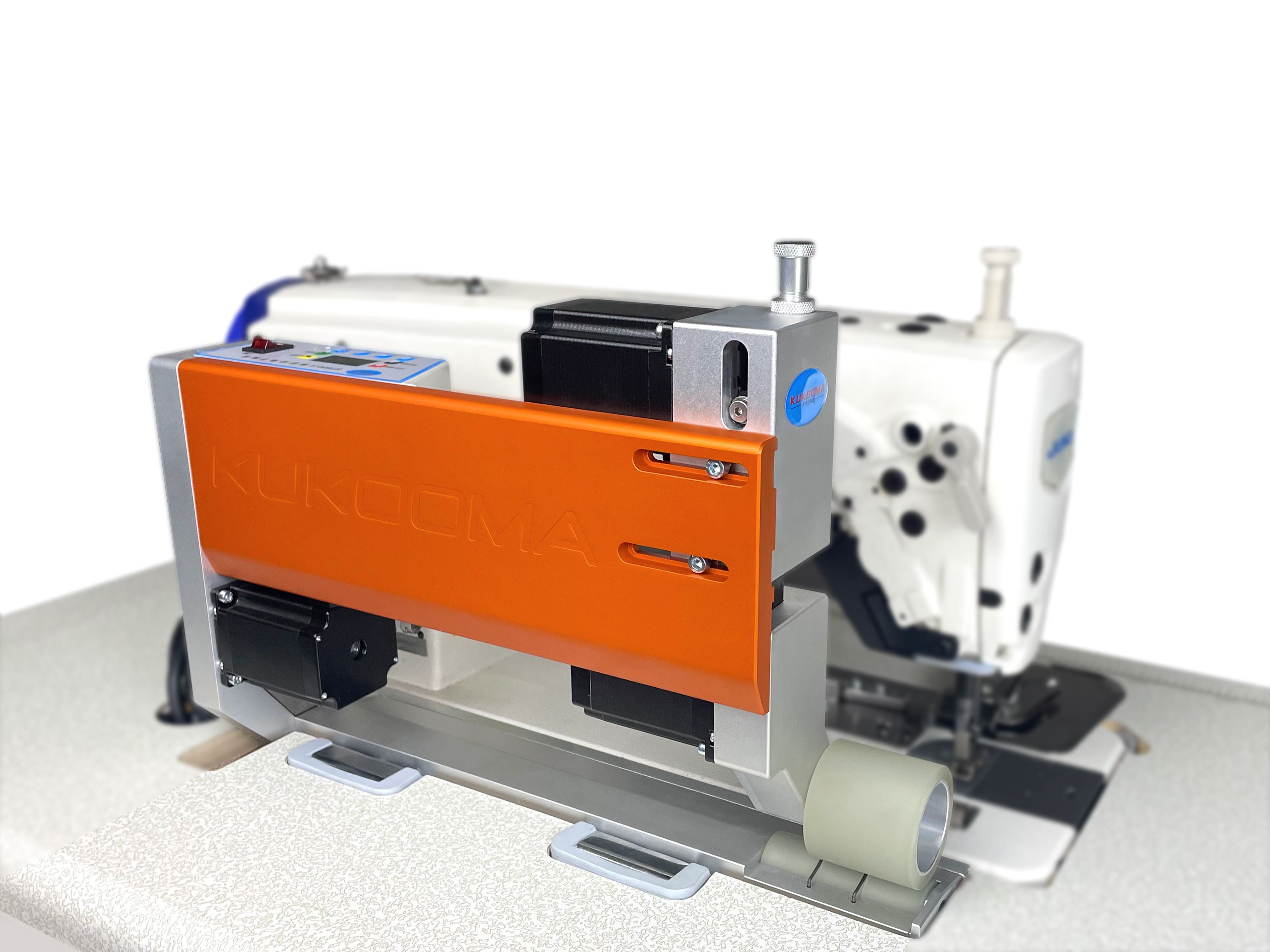

ST600 three-step dual-drive electronic puller
*橙色背板為最新款
* Orange back is the latest model
解決針對于窗簾家紡等大型縫制面料
“拉不動” “易起皺” “易錯層”等問題
Solve the problems of "unable to pull", "easy to wrinkle" and "easy to split" for large sewing fabrics such as curtains and home textiles
核心優勢Core strengths
-
三步進電機雙驅動力更強勁，拉力更強
The dual driving force of the three-stepper motor is stronger and the pulling force is stronger
-
整機一體化集成控制無額外電控箱且控制面板數字化顯示
The integrated control of the whole machine has no additional electric control box and the control panel is displayed digitally
-
是真正做到與送料牙齒同步
It is truly synchronized with the feeding teeth
-
自帶差動補償，上下輪為獨立電機控制且可單獨進行控速
With differential compensation, the upper and lower wheels are independently controlled by the motor and can be controlled separately
-
上輪最大抬升20mm，可應對厚至棉被，薄至紗
The upper wheel has a maximum lift of 20mm and can cope with quilts as thick as thick as tulle
-
不用可暫停，不影響縫紉機正常工作
If you don't need it, it can be paused, and it will not affect the normal operation of the sewing machine
產品特點Product features
整機采用電子步進電機直驅，采用霍爾磁感應檢測具有滾輪提升準確、同步精度高、上下輪可實現差動調速的優點，擁有多種模式開機自檢等功能。

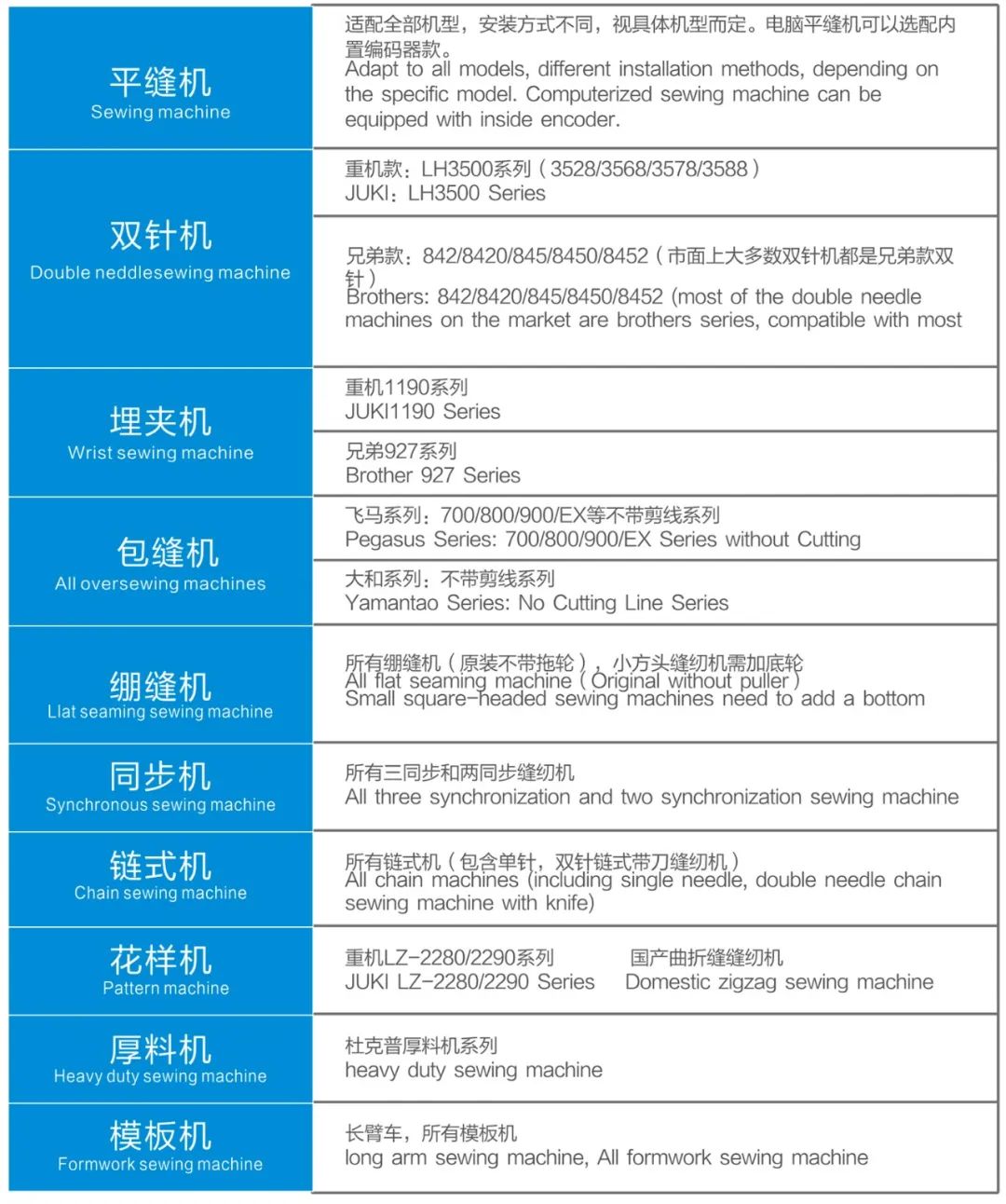

適用于平縫機，雙針機，同步機，鏈?zhǔn)綑C(jī)，厚料機
The whole machine adopts electronic stepper motor direct drive, and Hall magnetic induction detection has the advantages of accurate roller lifting, high synchronization accuracy, differential speed regulation of upper and lower wheels, and has a variety of modes of boot self-test and other functions.
Suitable for flat sewing machine, double needle machine, synchronous machine, chain machine, thicker machine
